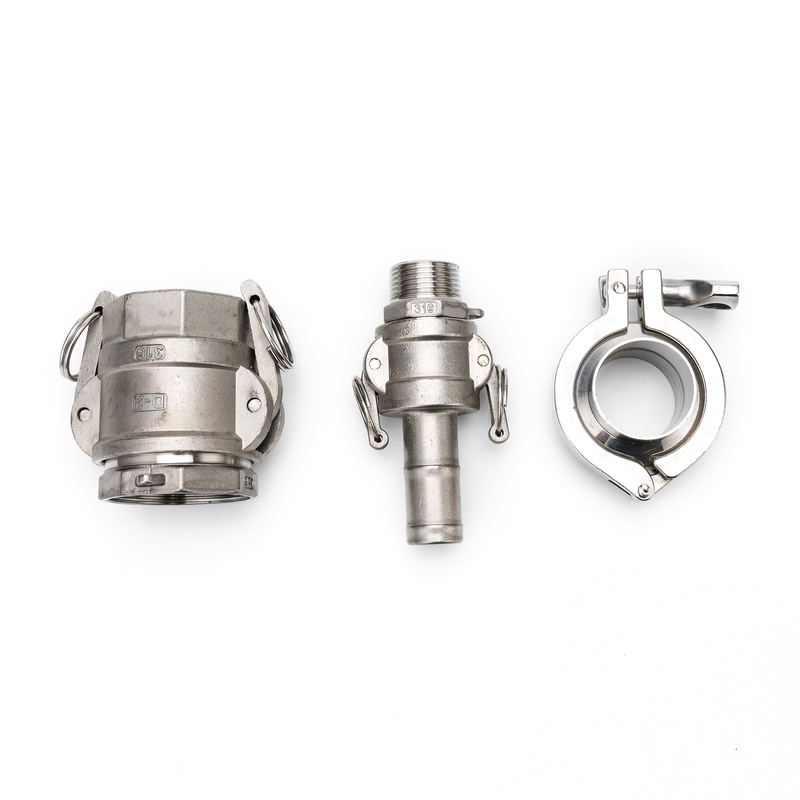

| Nominal Size | Dimensions | ||||
| A (Max) | B(Max) (Style 1) | B(Max) (Style 2) | D | D | |
| 1/2 | 1.50 | 2.88 | 3.10 | 2 | 0.156 |
| 3/4 | 1.50 | 2.88 | 3.10 | 2 | 0.156 |
| 1 | 1.75 | 3.00 | 3.50 | 2 | 0.156 |
| 1 1/4 | 3.00 | 3.69 | 4.30 | 2 | 0.156 |
| 1 1/2 | 3.00 | 3.94 | 4.50 | 2 | 0.156 |
| 2 | 3.00 | 4.38 | 4.90 | 2 | 0.156 |
| 2/2 | 3.00 | 4.88 | 5.40 | 2 | 0.156 |
| 3 | 3.25 | 5.75 | 6.40 | 2 | 0.250 |
| 4 | 3 . 25 | 6.88 | 7.50 | 2 | 0.250 |
| 6 | 4.25 | 10.10 | 10.60 | 3 | 0.250 |
| Size | A | B | C | D | E | F | G | H | J(Min) | J SS(Min) | K(Min) | A |
| 1/2 | 0.737 0.732 |
0.959 0.954 |
.378 .372 |
0.07 | .471 .465 |
1.06 | 0.03 | .959 | .09 | .06 | .37 | .37 |
| 3/4 | 6.362 6.357 |
1.264 1.259 |
.378 .372 |
0.09 | .471 .465 |
1.00 | 0.06 | 1.264 1.259 |
.09 | .06 | .37 | .37 |
| 1 | 1.035 1.030 |
1.446 1.441 |
.378 .372 |
0.013 | .565 .559 |
1.32 | 0.09 | 1.446 1.441 |
.09 | .09 | .37 | .37 |
| 1 1/4 | 1.144 1.139 |
1.792 1.787 |
.441 .435 |
0.013 | .690 .684 |
1.56 | 0.12 | 1.792 1.787 |
.12 | .09 | .50 | .50 |
| 1 1/2 | 1.388 1.383 |
2.105 2.100 |
.441 .435 |
0.013 | .690 .684 |
1.62 | 0.12 | 2.105 2.100 |
.12 | .09 | .50 | .50 |
| 2 | 1.690 1.685 |
2.484 2.479 |
.441 .435 |
0.013 | .848 .842 |
1.87 | 0.12 | 2.484 2.479 |
.12 | .09 | .50 | .50 |
| 2/2 | 2.065 2.060 |
2.985 2.980 |
.441 .435 |
0.019 | .848 .842 |
1.94 | 0.12 | 2.985 2.980 |
.15 | .13 | .63 | .63 |
| 3 | 2.545 2.540 |
3.604 3.599 |
.503 .497 |
0.019 | .895 .889 |
2.00 | 0.12 | 3.604 3.599 |
.15 | .13 | .63 | .75 |
| 4 | 3.202 3.197 |
4.708 4.703 |
.503 .497 |
0.022 | .895 .889 |
2.07 | 0.12 | 4.708 4.703 |
.20 | .15 | .87 | .75 |
| 6 75psi | 4.307 4.302 |
6.929 6.924 |
.659 .653 |
0.022 | .963 .957 |
2.25 | 0.12 | 6.929 6.924 |
.20 | .15 | .87 | .75 |
| 6 150psi | 6.362 6.357 |
6.929 6.924 |
.659 .653 |
0.022 | .963 .957 |
2.25 | 0.12 | 6.929 6.924 |
.25 | .15 | .87 | .75 |
| Nominal | Dimensions | Gasket (seefigure 4) |
Torque to close cam arms | |||||
| A | B | C | D (Min) | D StainessStee (Min) | E | |||
| 1/2 | .967 | 1.06 | .19 | .06 | .06 | NA | -1 | 60 inch 1bs., max |
| 3/4 | 1.276 | 1.42 | .25 | .06 | .06 | NA | -2 | 60 inch 1bs., max |
| 1 | 1.466 | 1.59 | .28 | .09 | .09 | NA | -3 | 70 inch 1bs., max |
| 1 1/4 | 1 . 812 | 2.00 | .28 | .09 | .09 | NA | -4 | 100 inch 1bs., max |
| 1 1/2 | 2.125 | 2.25 | .28 | .09 | .09 | NA | -5 | 100 inch 1bs., max |
| 2 | 2.510 | 2.69 | .28 | .09 | .09 | NA | -6 | 100 inch 1bs., max |
| 2/2 | 3.011 | 3.19 | .28 | .13 | .13 | NA | -7 | 100 inch 1bs., max |
| 3 | 3.630 | 3.78 | .28 | .13 | .13 | NA | -8 | 140 inch 1bs., max |
| 4 | 4.734 | 4.94 | .28 | .15 | .15 | 3.90 6 | -9 | 150 inch 1bs., max |
| 6 75psi | 6.950 | 7.14 | .28 | .15 | .15 | 5.90 6 | -10 | 200 inch 1bs., max |
| 6 150psi | 6.950 | 7.14 | .28 | .15 | .15 | 5.90 6 | -10 | 200 inch 1bs., max |
