CLAPMPS
PRODUCT STANDARD: ASME/ DIN/GB
PRODUCT MATERIAL: STAINLESS STEEL
PRODUCT SURFACEFINISH: NIL

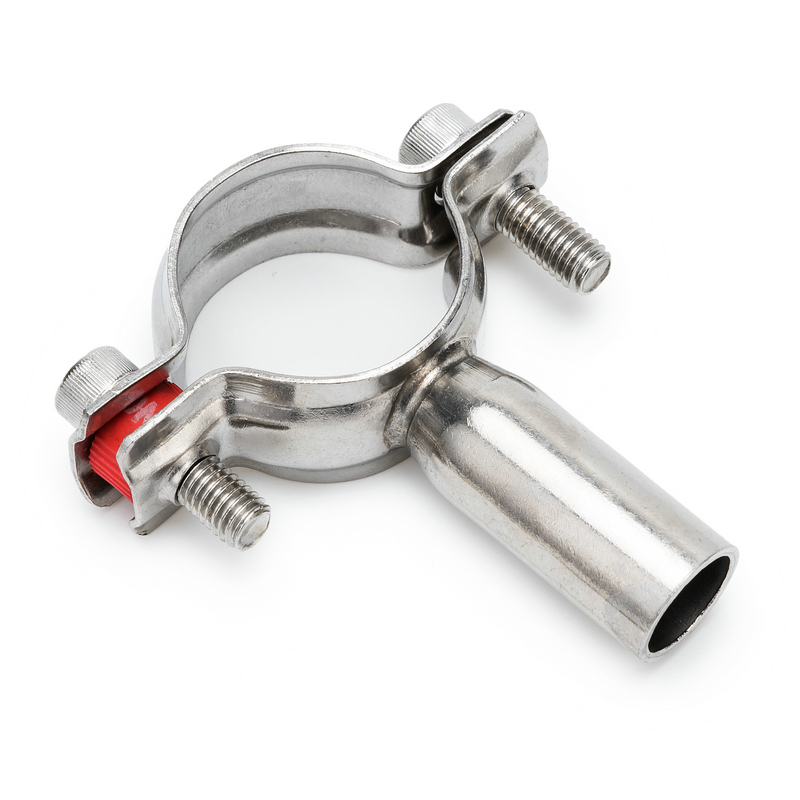

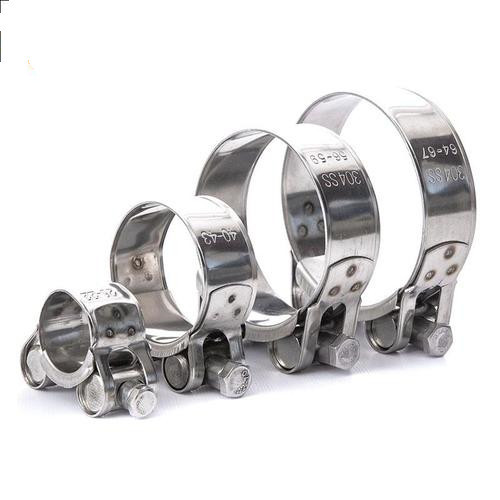

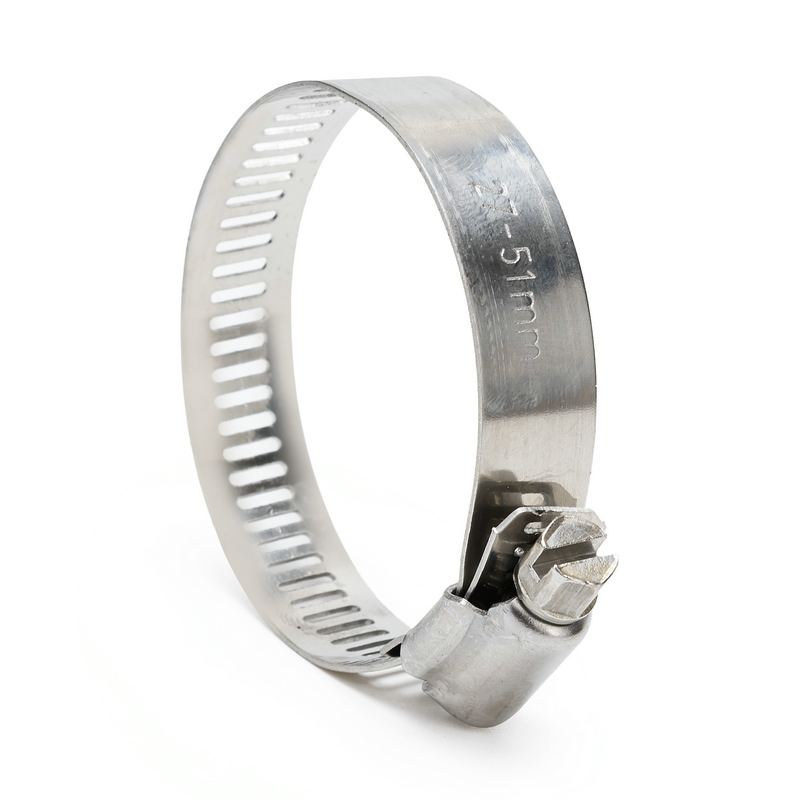

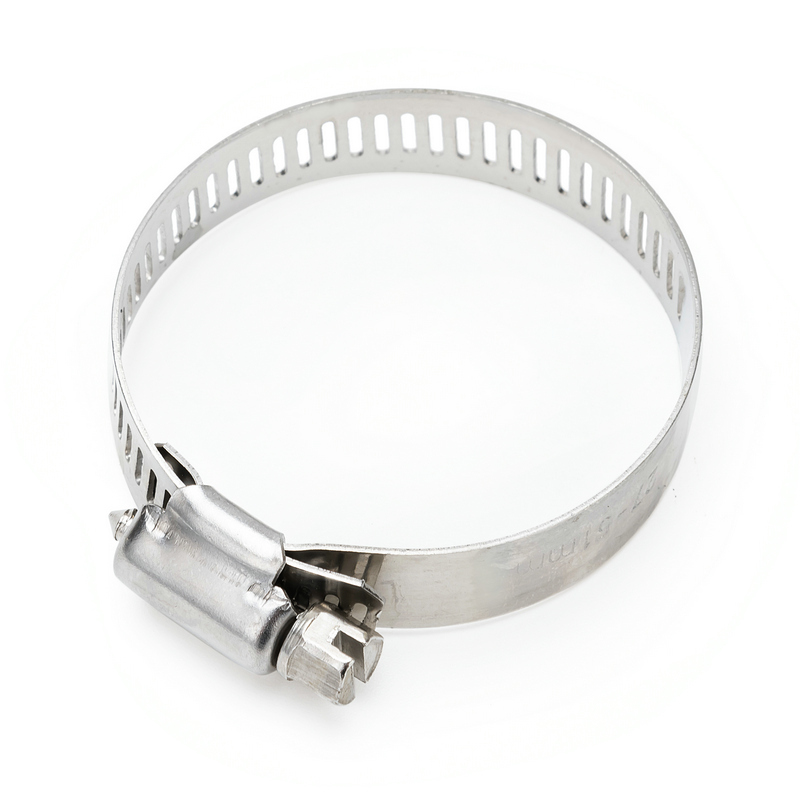

PRODUCT PHOTO AND SKETCH
PRODUCT SIZE AND SPECIFICATION
KIND ATTENTION: PHOTOS AND SKETCH MAYVARY FROM YOUR REQUEST. YOUR PHOTOS AND DRAWINGS ARE HIGHLY APPRECIATED!
| SIZE |
THICKNESS X WIDTH mm |
SCREW mm |
WEIGHT BY EVERY 100 PC kg |
| 17-19 |
0.6*18 |
m5*40 |
4.4 |
| 20-22 |
4.5 |
| 23-25 |
4.6 |
| 26-28 |
4.7 |
| 29-31 |
0.6*20 |
m6*50 |
5.5 |
| 32-35 |
5.6 |
| 36-39 |
5.7 |
| 40-43 |
5.9 |
| 44-47 |
0.8*22 |
m8*60 |
7.5 |
| 48-51 |
7.8 |
| 52-55 |
8 |
| 56-59 |
8.3 |
| 60-63 |
8.4 |
| 64-67 |
8.5 |
| 68-73 |
0.8*24 |
m8*70 |
12.1 |
| 74-79 |
12.3 |
| 80-85 |
12.6 |
| 86-91 |
13.1 |
| 92-97 |
13.6 |
| 98-103 |
m8*80 |
13.8 |
| 104-112 |
14.1 |
| 113-121 |
14.5 |
| 122-130 |
14.9 |
| 131-139 |
1.0*26 |
ml0*90 |
20.9 |
| 140-148 |
21.2 |
| 149-161 |
21.5 |
| 162-174 |
22.5 |
| 175-187 |
ml0*100 |
25.2 |
| 188-200 |
26.2 |
| 201-213 |
27.2 |
| 227-239 |
28.8 |
| 214-226 |
28.2 |
